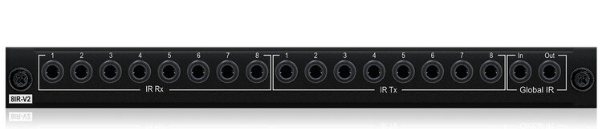

Blustream 8-Way IR Control Board with 5v - 12v IR Conversion

Code: 45039
Loading...


PRO-8IR-V2

Bi-Directional 5V/12V IR Control Board

The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features

  • 8 x IR outputs for routed control of local source hardware
  • 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
  • Selectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications

  • IR Input Ports: 9 x 3.5mm stereo jack
  • IR Output Ports: 9 x 3.5mm mono jack
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
