Blustream HDBaseT™ USB Extender Set - 70m

Code: 45075
Loading...


HEX70HDU-KIT

Multi Format HDBaseT™ Extender Set Supporting 4K up to 40m (1080p up to 70m) - Switchable HDMI, DisplayPort™ and USB-C Inputs with Auto Signal Sensing / Switching, Local HDMI Input on RX, Bi-directional IR, IP & RS-232 Control

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
  • Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
  • Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2
  • Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Bi-directional IR pass-through
  • Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
  • Web interface module for control and configuration of HEX70HDU-KIT
  • Control via front panel, IR, RS-232 or TCP/IP
  • Advanced EDID and HDCP management
*USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device

Box Contents
1 x HEX70HDU-TX
1 x HEX70HDU-RX
1 x 24V/5A DC Power Supply
1 x IR Emitter
1 x IR Receiver
1 x RS-232 Control Cable
2 x Mounting Kits
1 x Quick Reference Guide

Specifications

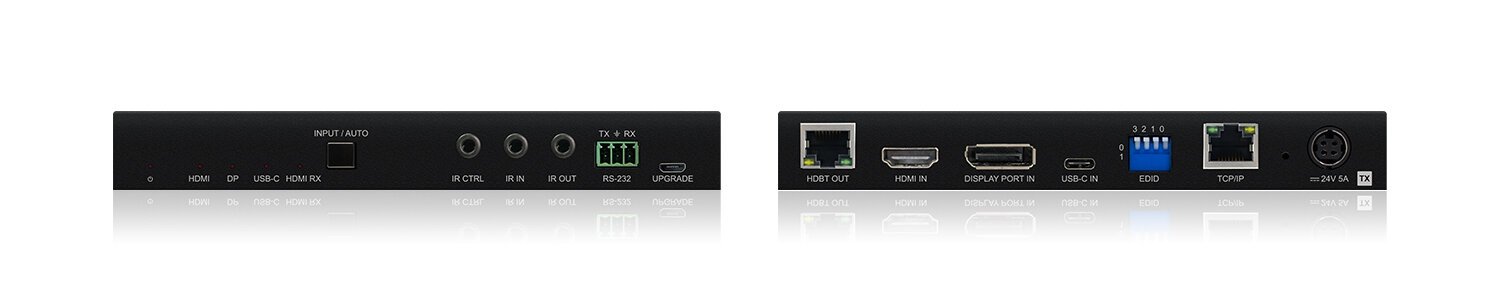

HEX70HDU-TX:

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack (1 x switching control, 1 x IR pass-through)
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID: 4-pin DIP switch
  • Product Upgrade: 1 x Micro USB, female
  • Casing Dimensions (W x H x D): 175mm x 24mm x 155mm
HEX70HDU-RX:
  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 5-pin Phoenix connector (2ch balanced / unbalanced analogue audio), 1 x RCA (S/PDIF)
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • Relay Control: 2 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID: 4-pin DIP switch
  • Product Upgrade: 1 x Micro USB, female
  • Casing Dimensions (W x H x D): 175mm x 24mm x 155mm
