Blustream Slimline HDBaseT™ Extender Set - 1080p to 70m

Code: 45072
Loading...


HEX70CS-KIT

HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP 2.2 compliant
Box Contents
1 x HEX70CS-TX
1 x HEX70CS-RX
2 x Mounting Brackets
1 x 12V/2A Power Supply
1 x IR Emitter
1 x IR Receiver
1 x Quick Reference Guide

Specifications

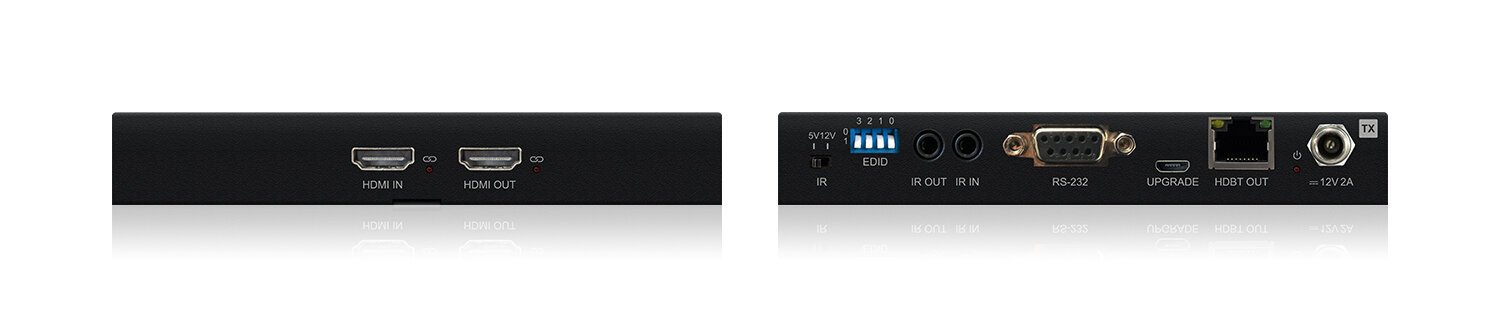

HEX70CS-TX:
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID DIP Switch: 4-pin
HEX70CS-RX:
  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)
