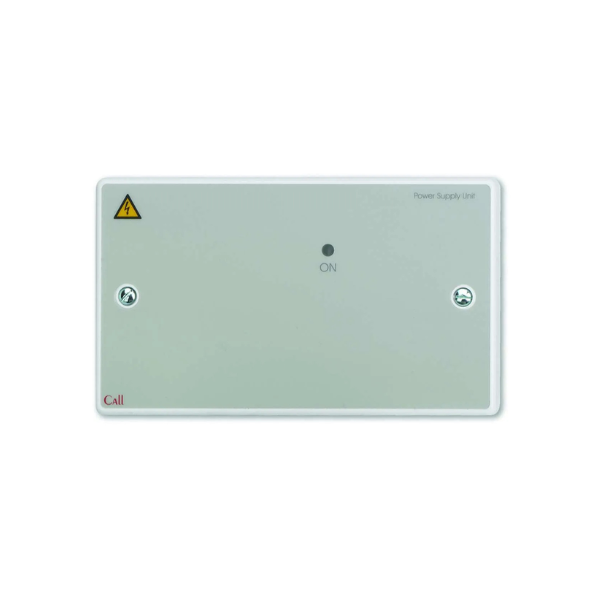

C-TEC Nurse Call Power Supply Unit 12V 250mA
12V 250mA Double Gang PSU
NC930
Features:
- A compact 12V 250mA double gang power supply unit.
- Can provide power to up two NC944 Four Zone Call Controllers.
- Suitable for use in many other applications.
- Includes a green power on indicator
- Mounts on a standard UK 25mm double gang flush or surface back box.
- Dimensions: 147 W x 87 H x 34 D mm. Mounts on a 25mm UK double gang back box.
| Weight |
275g |
IP rating |
IP41 |
| Controls |
N/A |
Mains Supply |
230V 50/60Hz (36mA max. current). 50Hz frequency. |
| Internal Power Supply |
12V d.c. |
Total output current limited to |
250mA |
| Indicators |
Green Supply Present LED. |
Connections |
+Ve and -Ve out; Batt + and Batt – (for connection to an optional remote NC941B battery back up kit) |
| Product dimensions (mm) |
147 W x 87 H x 34 D mm. Mounts on a standard 25mm UK double gang back box. Protrusion depth in back box is 20mm. |
Construction & Finish |
Plastic |
| Operating conditions/temperature |
-5ºC to +40ºC. Max. relative humidity 95% non-condensing. |
