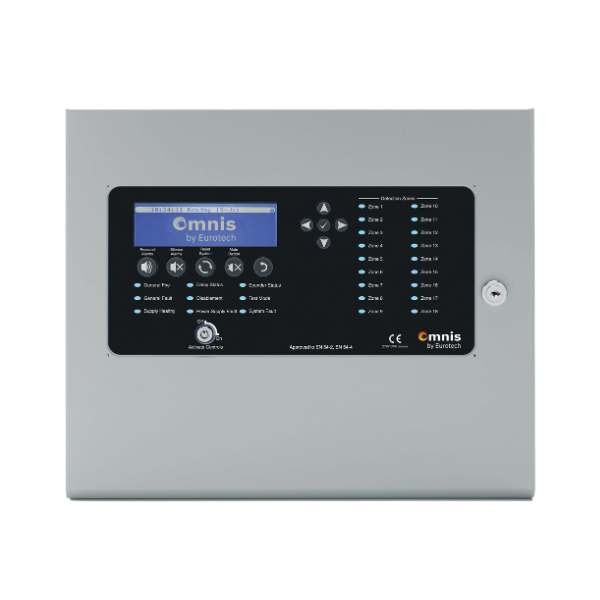

Omnis 1 - 2 Loop Analogue Addressable Panel (Eurotech/Argus Vega Protocol)

Omnis 1 - 2 Loop Addressable Panel

OMN-V1001

Features:

• One to two loops
• 2 sounder circuits
• Large graphical display
• 255 date and time stamped event logs
• Auto learn function
• 240/254 devices per loop dependent on protocol
• False alarm management
• Programmable company logo
• Loop fault diagnostics
• Delays to outputs
• 128 programmable groups
• 18 zonal LEDs
• 1.2A integral PSU
• Approved to EN54-2 & EN54-4
• Robust metal enclosure

Overview:

Omnis 1–2 loop analogue addressable control panels offer a simple, cost-effective, and robust solution for intelligent fire systems. Supporting up to two loops with 240/254 devices per loop (protocol dependent), they are ideal for small to medium sites.

Featuring a large graphical display with intuitive menus, Omnis panels enable quick setup and easy maintenance. They support the full range of Eurotech and Odyssey protocol devices, including wireless accessories.

Supplied with a 1.2A EN54-4 compliant internal switch mode power supply with temperature-compensated battery charging, the panels are approved to EN54-2 and EN54-4 standards.
