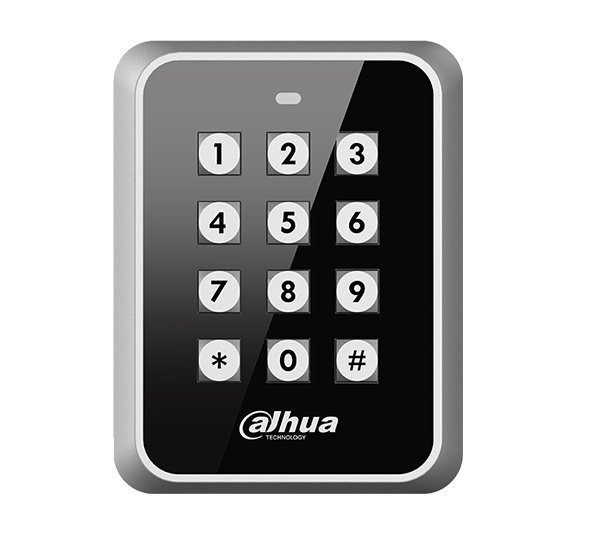

Vandal-proof RFID Reader (ID) Password, ID card reader

Code: 13122

DHI-ASR1101M-D

Loading...


Vandal-proof RFID Reader (ID) Password, ID card reader


DHI-ASR1101M-D

Features:


  • The Zinc alloy panel is secure and durable.
  • The metal keypad has a backlight and makes a beeping sound each time you press a key on it.
  • High-performance 32-bit processor.
  • 3 identity verification modes: Card, password, and a combination of card and password.
  • Contactless card reading. Supports reading ID cards.
  • Works at a frequency of 125 kHz.
  • RS-485 and Wiegand communication.
  • Highly compatible with third-party products, the device supports the W26 and W34 Wiegand interface, with W34 as the default.
  • Provides online updates.
  • Buzzer and indicator light.
  • Lightning-proof, antistatic, and anti-short-circuit design.
  • Built-in dongle software ensures long-term operation of the device.
  • Tamper alarm.
  • Overcurrent and overvoltage protection for all interfaces.
  • IK08 rated.
  • Operating temperature is –10 °C to +55 °C, and the operating humidity is less than 95%.
  • Supports surface mount and flush mount (86 mount box is required).
