Ziton Addressable manual call point, with trim kit

Code: 36185

ZP886R-TSKIT

Loading...


Ziton Addressable manual call point, with trim kit

ZP886R-TSKIT

Features:


  • Reliable single action manual call point for flush mounting
  • Dual, tri-colour status indicators offers 180° alarm visibility
  • Tamper resistant design with resettable or frangible element
  • Unobtrusive front facing test facility
  • Standard mounting options facilitates easy retrofitting to existing installations
  • Matching optional back box with rear, top and bottom cable entry
  • Pluggable connector with link through facility for ease of installation and pre-commissioning testing
  • An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
  • Fast, no-tools-required maintenance using the test key
  • Up to 127 devices per loop

Overview:

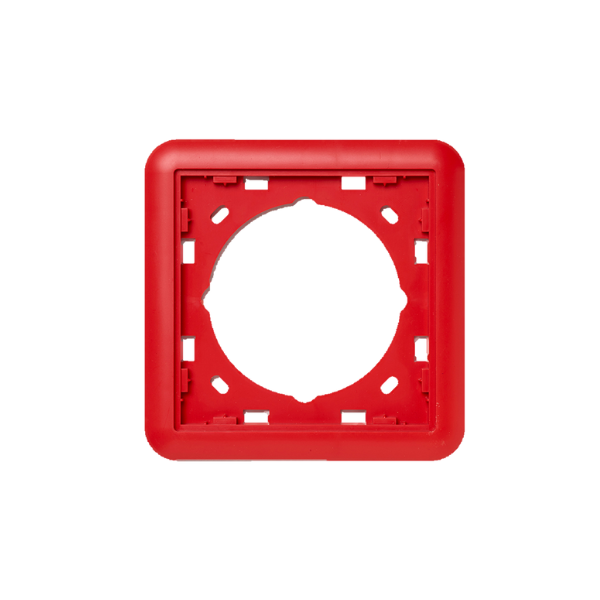

The ZP880 Series is an intelligent range of addressable manual call points. The ZP886R-TSKIT is a red, single action indoor MCP. It is delivered complete with resettable element, test connector and test key, as well as a trim skirt for clean, flush mount installation. Multiple optional accessories are available to facilitate most indoor installation requirements.
